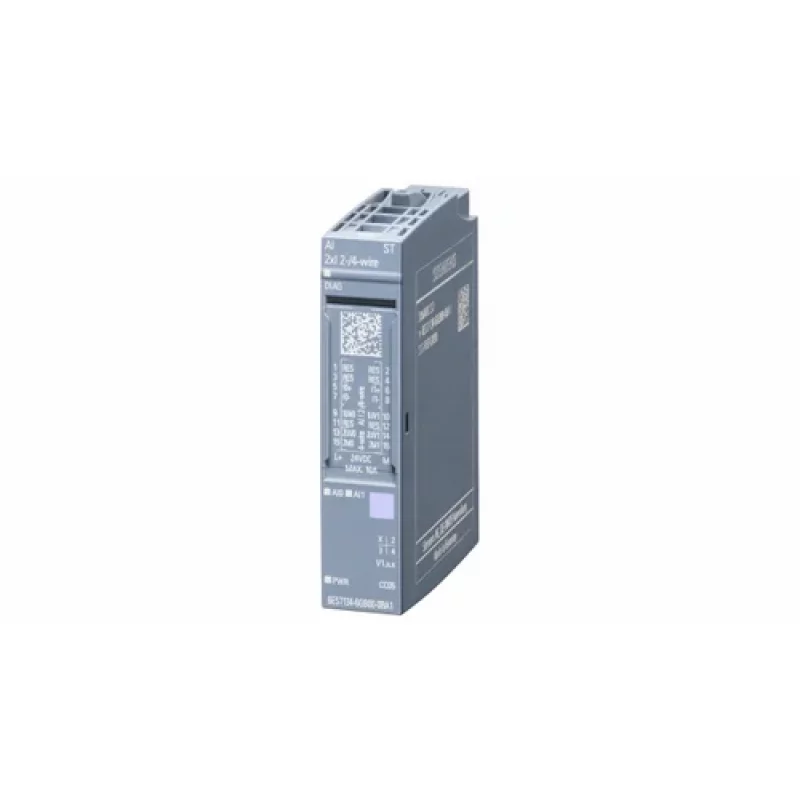

ET 200SP AI 2xI 2/4-wire 6ES71346GB000BA1

Product Details:

Brand	Siemens
Usage/Application	Industrial
Model Name/Number	6ES7134-6GB00-0BA1
Input Output Control Method	YES
Storage Temperature	horizontal installation, min. -30 DegreeC; < 0 DegreeC as of FS04 horizontal installation, max. 60 DegreeC
Input current ranges	4-20ma
Input Voltage Max	0-10vdc
Maximum High Level Output Current	20ma
Maximum Low Level Output Current	4ma
Number of Channels	2

ET 200SP AI 2xI 2/4-wire  6ES71346GB000BA1
6ES7134-6GB00-0BA1
ET 200SP, AI 2xI 2-/4-Wire ST, PU 1

AI 2xI 2-,4-Wire ST

6ES7134-6GB00-0BA1

Analog input module AI2 x I 2-,4-wire ST 16-bit; value status; common mode voltage 10V; configurable diagnostics; supports PROFIenergy

SIMATIC ET 200SP, Analog input module, AI 2xI 2-/4-wire Standard, Pack quantity: 1 unit, suitable for BU type A0, A1, Color code CC05, Module diagnostics, 16 bit

General informationProduct type designation AI 2xI 2-/4-wire STHW functional status from FS04Firmware version● FW update possible Yesusable BaseUnits BU type A0, A1Color code for module-specific color identification plate CC05Product function● I&M data Yes; I&M0 to I&M3● Isochronous mode No● Measuring range scalable NoEngineering with● STEP 7 TIA Portal configurable/integrated from version V13 SP1● STEP 7 configurable/integrated from version V5.5 SP3● PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher● PROFINET from GSD version/GSD revision V2.3 / -Operating mode● Oversampling No● MSI NoCiR - Configuration in RUNReparameterization possible in RUN YesCalibration possible in RUN NoSupply voltageRated value (DC) 24 Vpermissible range, lower limit (DC) 19.2 Vpermissible range, upper limit (DC) 28.8 VReverse polarity protection YesInput currentCurrent consumption, max. 45 mA; without sensor supplyEncoder supply24 V encoder supply● 24 V Yes● Short-circuit protection Yes● Output current, max. 50 mA; Total current for both channels (two-wire)Additional 24 V encoder supply● 24 V Yes● Short-circuit protection Yes; Module-wise● Output current, max. 200 mA; Total current for both channels (four-wire)Power lossPower loss, typ. 1.1 W6ES71346GB000BA1Address areaAddress space per module● Address space per module, max. 4 byte; + 1 byte for QI informationHardware configurationAutomatic encoding Yes● Mechanical coding element Yes● Type of mechanical coding element Type ASelection of BaseUnit for connection variants● 1-wire connection BU type A0, A1● 2-wire connection BU type A0, A1● 4-wire connection BU type A0, A1Analog inputsNumber of analog inputs 2● For current measurement 2permissible input current for current input (destruction limit),max.50 mACycle time (all channels), min. 500 μsInput ranges (rated values), currents● 0 to 20 mA Yes; 15 bit— Input resistance (0 to 20 mA) 130 Ω; 90 ohms with two wires● -20 mA to +20 mA Yes; 16 bit incl. sign— Input resistance (-20 mA to +20 mA) 130 Ω● 4 mA to 20 mA Yes; 15 bit— Input resistance (4 mA to 20 mA) 130 Ω; 90 ohms with two wiresCable length● shielded, max. 1 000 mAnalog value generation for the inputsMeasurement principle Sigma DeltaIntegration and conversion time/resolution per channel● Resolution with overrange (bit including sign), max. 16 bit● Integration time, parameterizable Yes● Interference voltage suppression for interferencefrequency f1 in Hz16.6 / 50 / 60 Hz / off● Conversion time (per channel) 50 ms @ 60 Hz, 60 ms @ 50 Hz, 180 ms @ 16.6 Hz, 500 μs without filterSmoothing of measured values● Number of smoothing levels 4● parameterizable Yes● Step: None Yes; 1x conversion time● Step: low Yes; 4x conversion time● Step: Medium Yes; 8x conversion time● Step: High Yes; 16x conversion timeEncoderConnection of signal encoders● for current measurement as 2-wire transducer Yes— Burden of 2-wire transmitter, max. 650 Ω● for current measurement as 4-wire transducer YesErrors/accuraciesLinearity error (relative to input range), (+/-) 0.01 %Temperature error (relative to input range), (+/-) 0.005 %/KCrosstalk between the inputs, min. -50 dBRepeat accuracy in steady state at 25 °C (relative to inputrange), (+/-)0.05 %

Additional Information:

• Item Code: 6ES7134-6GB00-0BA1
• Production Capacity: 100
• Delivery Time: READY STOCK
• Packaging Details: Dimensions Width 15 mm Height 73 mm Depth 58 mm Weights Weight, approx. 32 g
