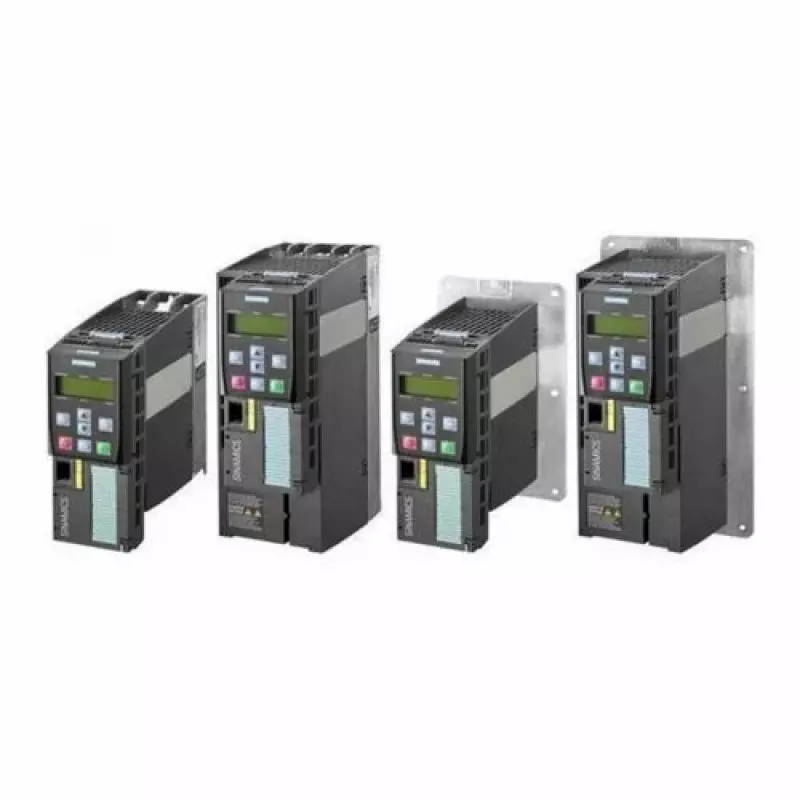

Siemens Sinamics G120 Ac Drives

Product Details:

Enclosure Type	IP20
Brand	SIEMENS
Model Name/Number	SIEMENS SINAMICS G120 AC DRIVES
Motor Power	0.55 kW up to 250 kW (0.75-400 hp)
Warranty	1 YEAR
Degree of Protection	IP20
Communication Ports	PROFINET,PROFIBUS,USS/Modbus RTU

• SINAMICS G120

Whether pumping, ventilating, compressing, moving or processing, the SINAMICS G120 is the universal drive to address the widest range of application requirements. It leverages its strengths in general machinery construction, as well as in the automotive, textile and packaging industries. Its modular design and wide range of power ratings extending from 0.55 kW up to 250 kW (.75–400 hp) always ensures that you can configure the perfect drive for your application. With SINAMICS G120, you will benefit from the wide range of possibilities that its modular design offers — including flexiblity and cost-savings, thanks to the need for reduced spare parts. All of this is complemented by its user-friendliness — from installation through maintenance.

• Modular design
• Innovative cooling concept for a higher degree of flexibility
• Application-oriented control modules with expanded I/O quantity scope and wide range of funcionality
• Positioning capability (EPos)
• Comprehensive range of encoder interfaces
• Safety Integrated: STO, SS1, SBC, SLS, SDI, SSM
• Power Modules with low line harmonics
• Energy recovery into the line supply without requiring additional modules
• Integrated SIL3 on PM240-2 frame sizes D, E and F
• Extremely compact design
• Significantly smaller than previous generation
• Integral part of Totally Integrated Automation Automation — with interfaces for PROFINET and PROFIBUS
• Supported profiles include PROFIdrive, PROFIsafe, PROFIenergy
• Coupling to third-party systems via USS / Modbus RTU, BacNet MS / TP, EtherNet/ IP

The modular SINAMICS G120 is suitable for the applications highlighted below :

• Centrifugal pumps Radial/axial fans Compressors
• Hydraulic pumps Dosing pumps
• Conveyor belts Roller conveyors Chain conveyors Vertical material handling Elevators/escalators Gantry cranes Marine drives Cable railways
• Accelerating conveyors Rack feeders
• Mills Mixers Kneaders Crushers Agitators Centrifuges Extruders Rotary furnaces
• Tubular bagging machines Single-axis motion control such as: Positioning profiles , Path profiles

Using the Totally Integrated Automation Portal (TIA Portal), our innovative engineering framework for all automation tasks, SINAMICS drives can be simply and efficiently integrated into any automation environment — using the SINAMICS Startdrive commissioning software, an integral component of the TIA Portal. This simplifies engineering, commissioning and diagnostics. TIA Portal is the core of Totally Integrated Automation. The open system architecture covers the complete production process — and means that every automation component efficiently interacts with each another. This is achieved through consistent data management, global standards and unified hardware and software interfaces.

Additional Information:

• Packaging Details: BOX PACK
